How To Test A Lead-Acid Battery?

How do you test a lead-acid battery and check if it's still good? Well, to do it properly, you need to follow these steps:

Safety precautions:

Make sure you are wearing appropriate protective gear, such as gloves and safety glasses, as lead-acid batteries contain sulfuric acid, which is corrosive.

Visual inspection:

Begin by visually inspecting the battery for any signs of damage, such as cracks, leaks, or corrosion on the terminals. If you notice any issues, it's recommended to dispose of the battery properly and not proceed with testing.

Open-circuit voltage test:

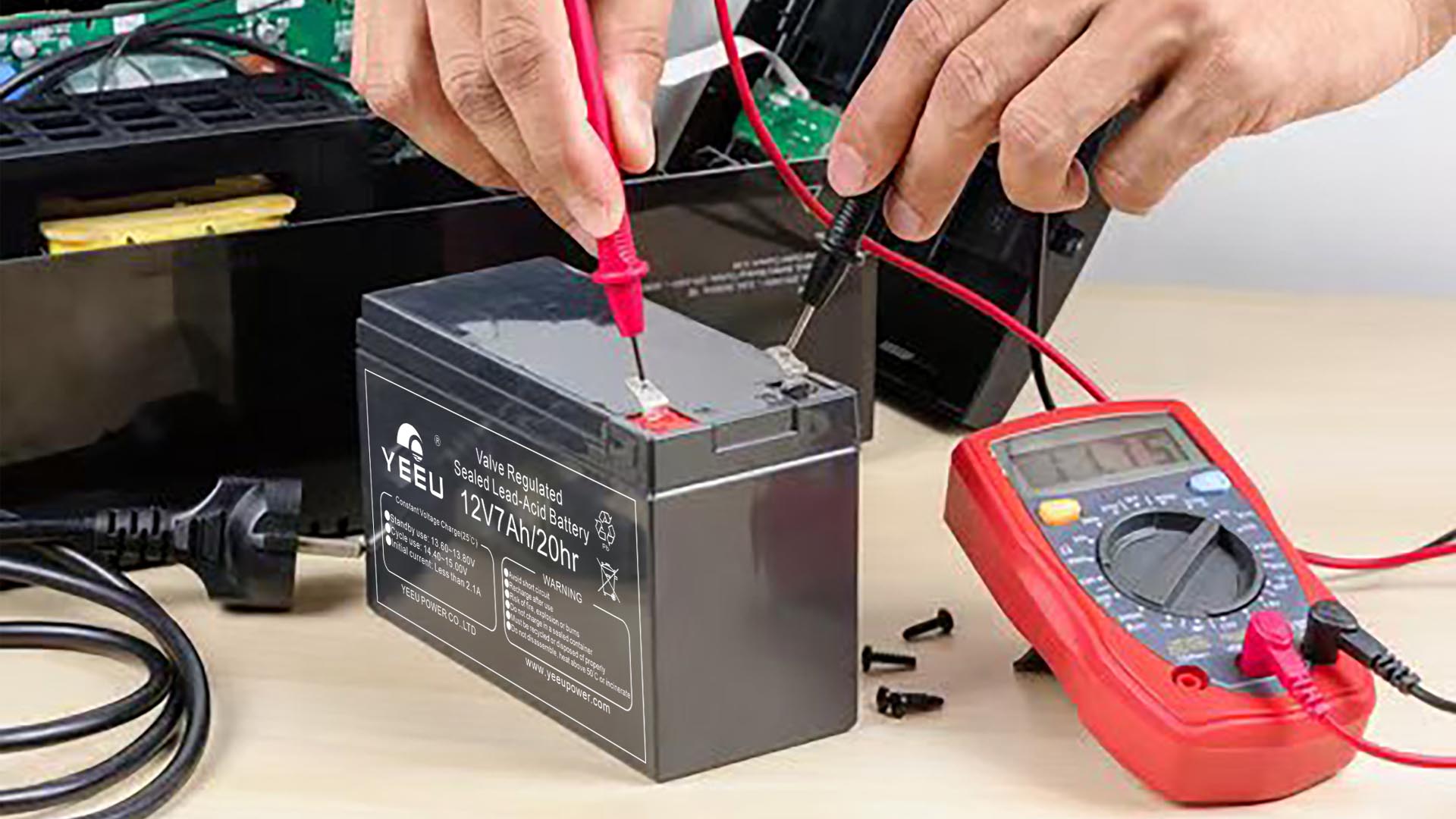

Use a multimeter to measure the battery's open-circuit voltage (OCV) by touching the multimeter probes to the positive and negative terminals. A fully charged lead-acid battery should typically have an OCV of around 12.6 to 12.8 volts. If the voltage is significantly lower, it may indicate a discharged or faulty battery.

Load test:

A load test helps assess the battery's ability to deliver power under a simulated load. You can use a battery load tester or take the battery to a professional for this test. The load test applies a controlled load to the battery while monitoring its voltage. If the voltage drops significantly or the battery cannot sustain the load, it may indicate a weak or defective battery.

Specific gravity test (for flooded batteries):

If you have a flooded lead-acid battery, you can use a hydrometer to measure the specific gravity of the electrolyte in each cell. Check the lead acid battery manufacturer's specifications for the recommended specific gravity values. Significant variations in specific gravity between cells may indicate an imbalance or a faulty cell.

Interpretation of results:

Based on the test results, you can determine the health of the lead-acid battery. If the battery performs well in the open-circuit voltage, load test, and specific gravity (for flooded batteries), it is likely in good condition. However, if it fails multiple tests, shows significant voltage drop or cannot hold a charge, it may be time to replace the battery.

Remember, if you're not sure or not confident in testing lead-acid batteries yourself, it's recommended to seek professional assistance or take the battery to a qualified service center for evaluation.
