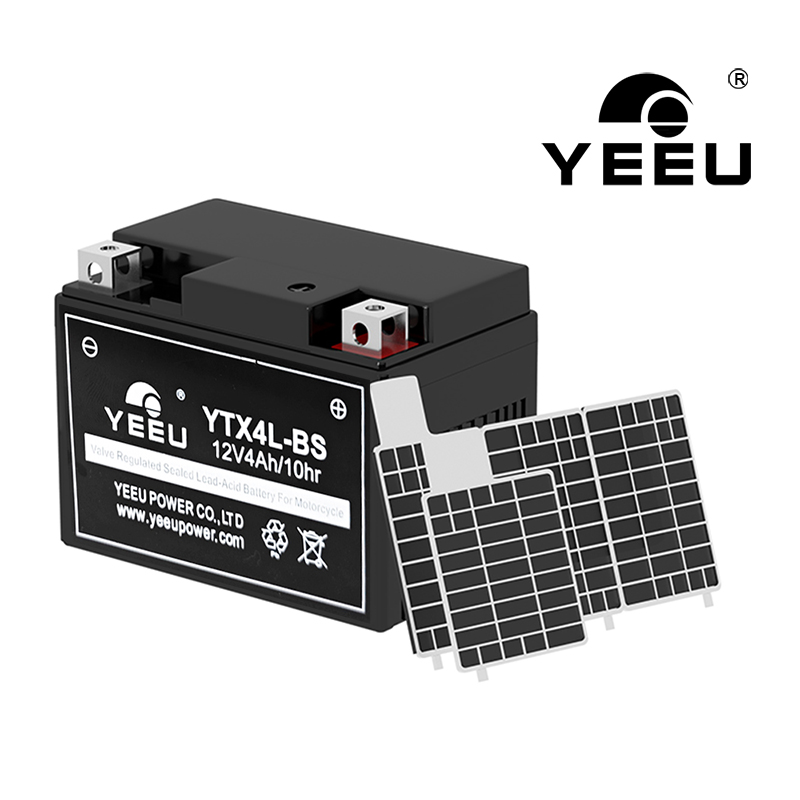

Motorcycle batteries, like many other lead-acid batteries, also use plates as one of their key components. These plates are fundamental to the battery's operation and are typically composed of lead or lead alloy.
The design and construction of these plates are optimized for the specific requirements of motorcycle batteries, such as compact size, durability, and ability to withstand vibrations and shocks associated with motorcycle use. Motorcycle batteries are typically smaller and lighter compared to batteries used in larger vehicles, but they still need to provide sufficient starting power for the engine.
Overall, the plates in motorcycle batteries play a crucial role in storing and releasing electrical energy, making them essential components for the proper functioning of the battery and the motorcycle's electrical system.
Item No :
Battery Plate(Motorcycle Batteries)Product Origin :
Fujian, JiangxiShipping Port :
Xiamen, ChinaLead Time :
15 DaysMOQ :
5000 PCSSample :
AcceptablePayment terms :
T/T, L/C| Item | Model | Polairty | Plate Size（㎜） | Lug Size（㎜） | Lug Distance | Weight | ||||||||||
| H±1.5 | W±1.5 | Thickness ±0.15 | H±1.0 | W±0.5 | Thickness ±0.1 | mm/±1.5 | g/±5% | |||||||||
| 1 | YT1A | + | 43 | 58 | 1.6 | 10 | 6 | 1.35 | 17 | 20 | ||||||
| - | 43 | 58 | 1.5 | 10 | 6 | 1.1 | 17 | 17 | ||||||||
| 2 | YM1.0A | + | 43 | 58 | 1.8 | 10 | 6 | 1.5 | 11.5 | 20 | ||||||
| - | 45 | 58 | 1.4 | 10 | 6 | 1.0 | 11.5 | 17 | ||||||||
| 3 | YM1.3A | + | 47 | 54 | 1.7 | 30 | 4 | 1.5 | 17 | 21.5 | ||||||
| - | 47 | 54 | 1.3 | 30 | 4 | 1.1 | 17 | 16 | ||||||||
| 4 | YM1.4A | + | 46 | 59 | 1.8 | 12 | 7.5 | 1.4 | 16 | 25 | ||||||
| - | 46 | 59 | 1.4 | 12 | 7.5 | 1.2 | 16 | 19.5 | ||||||||
| 5 | YM1.6A | + | 76 | 47 | 1.6 | 15 | 6 | 1.4 | 12.5 | 29 | ||||||
| - | 76 | 47 | 1.25 | 15 | 6 | 1.0 | 12.5 | 21 | ||||||||
| 6 | YY1.6 | + | 75 | 47 | 1.7 | 12 | 6 | 1.3 | 13 | 27 | ||||||
| - | 75 | 47 | 1.5 | 12 | 6 | 1.1 | 13 | 23 | ||||||||
| 7 | YM1.62A | + | 48 | 69 | 1.8 | 12 | 8 | 1.25 | 16 | 28 | ||||||
| - | 48 | 69 | 1.4 | 12 | 8 | 1.0 | 16 | 23 | ||||||||
| 8 | YM1.63A | + | 75 | 43 | 1.9 | 41 | 5 | 1.5 | 10 | 31 | ||||||
| - | 75 | 43 | 1.3 | 41 | 5 | 1.2 | 10 | 20 | ||||||||
| 9 | YM1.64A | + | 48 | 73 | 1.7 | 12 | 8 | 1.4 | 18 | 30 | ||||||
| - | 48 | 73 | 1.5 | 13 | 8 | 1.1 | 18 | 24 | ||||||||
| 10 | YM1.65A | + | 47 | 68 | 2.1 | 12 | 8 | 1.7 | 13 | 33 | ||||||
| - | 47 | 68 | 1.5 | 12 | 8 | 1.1 | 13 | 23 | ||||||||
| 11 | YM1.7A | + | 78 | 50 | 1.8 | 19 | 6 | 1.4 | 13.5 | 34.5 | ||||||
| - | 78 | 50 | 1.4 | 19 | 6 | 1.1 | 13.5 | 26.5 | ||||||||
| 12 | YM1.72A | + | 79 | 54 | 1.7 | 14 | 7 | 1.4 | 14 | 34 | ||||||
| - | 80 | 54 | 1.25 | 14 | 7 | 1.0 | 14 | 26 | ||||||||
| 13 | YM1.75A | + | 44 | 68 | 1.8 | 35 | 7 | 1.6 | 19 | 28 | ||||||
| - | 44 | 68 | 1.4 | 35 | 7 | 1.2 | 19 | 19 | ||||||||
| 14 | YM1.8A | + | 47 | 76 | 1.9 | 11 | 8 | 1.5 | 19 | 34 | ||||||
| - | 47 | 76 | 1.6 | 11 | 8 | 1.1 | 19 | 25.5 | ||||||||
| 15 | YY1.8A | + | 48 | 70 | 1.9 | 12 | 8 | 1.6 | 17 | 32 | ||||||
| - | 48 | 70 | 1.6 | 12 | 8 | 1.2 | 17 | 23 | ||||||||
| 16 | YM1.9A | + | 62 | 54 | 1.7 | 12.5 | 6 | 1.2 | 13 | 26 | ||||||
| - | 62 | 54 | 1.3 | 12.5 | 6 | 1 | 13 | 21 | ||||||||
| 17 | YM2.0A | + | 53 | 68 | 1.75 | 26 | 5 | 1.55 | 19 | 31 | ||||||
| - | 53 | 68 | 1.4 | 26 | 5 | 1.15 | 19 | 25 | ||||||||
| 18 | YM2.1A | + | 62 | 54 | 2.0 | 13 | 6 | 1.6 | 13 | 33.5 | ||||||
| - | 62 | 54 | 1.5 | 13 | 6 | 1.1 | 13 | 23 | ||||||||
| 19 | YM2.2A | + | 72 | 58 | 1.9 | 13 | 8 | 1.4 | 13 | 40 | ||||||
| - | 72 | 58 | 1.6 | 13 | 8 | 1.1 | 13 | 30 | ||||||||
| 20 | YM2.3A | + | 59 | 76 | 1.8 | 12 | 8 | 1.5 | 19 | 39 | ||||||
| - | 59 | 76 | 1.5 | 12 | 8 | 1.2 | 19 | 32 | ||||||||
| 21 | YM2.32A | + | 85 | 54 | 1.9 | 12 | 8 | 1.4 | 14 | 40 | ||||||
| - | 85 | 54 | 1.5 | 12 | 8 | 1.1 | 14 | 29 | ||||||||
| 22 | YM2.4A | + | 85 | 56 | 1.9 | 12 | 8 | 1.4 | 14 | 43 | ||||||
| - | 85 | 56 | 1.4 | 12 | 8 | 1.1 | 14 | 31 | ||||||||
| 23 | YY2.4A | + | 72 | 62 | 1.9 | 10 | 8 | 1.5 | 12 | 40 | ||||||
| - | 72 | 62 | 1.5 | 10 | 8 | 1.2 | 12 | 29 | ||||||||
| 24 | YM2.5A | + | 68 | 63 | 1.5 | 52 | 6 | 1.3 | 20 | 33 | ||||||
| - | 68 | 63 | 1.2 | 52 | 6 | 1.0 | 20 | 25 | ||||||||
| 25 | YM2.9A | + | 90 | 63 | 1.6 | 25 | 7 | 1.4 | 20 | 45 | ||||||
| - | 90 | 63 | 1.3 | 25 | 7 | 1.1 | 20 | 32 | ||||||||
| 26 | YKS3A | + | 82 | 63 | 1.8 | 15 | 8 | 1.5 | 17.5 | 47.5 | ||||||
| - | 82 | 63 | 1.5 | 15 | 8 | 1.1 | 17.5 | 35.5 | ||||||||
| 27 | YY3A | + | 81 | 58 | 1.9 | 14 | 8 | 1.5 | 13.5 | 43 | ||||||
| - | 81 | 58 | 1.4 | 14 | 8 | 1.1 | 13.5 | 30 | ||||||||
| 28 | YY3.1A | + | 81 | 58 | 2.1 | 14 | 8 | 1.5 | 13.5 | 47 | ||||||
| - | ||||||||||||||||
| 29 | YJM3.2A | + | 85 | 62 | 1.9 | 13 | 7 | 1.6 | 13 | 48.5 | ||||||
| - | 85 | 62 | 1.4 | 13 | 7 | 1.2 | 13 | 36 | ||||||||
| 30 | YQ3.5A | + | 92 | 75 | 1.7 | 18 | 8 | 1.4 | 18.5 | 60 | ||||||
| - | 92 | 75 | 1.4 | 18 | 8 | 1.1 | 18.5 | 44 | ||||||||
| 31 | YQ13A | + | 128 | 146 | 2.2 | 19 | 15 | 1.9 | 39 | 210 | ||||||
| - | 128 | 146 | 1.7 | 19 | 15 | 1.2 | 39 | 140 | ||||||||
| 32 | YM5A | + | 104 | 74 | 2.1 | 20 | 6 | 1.8 | 20 | 82.5 | ||||||
| - | 104 | 74 | 1.5 | 20 | 6 | 1.2 | 20 | 55.5 | ||||||||
| 33 | YY1.4A | + | 62 | 54 | 1.55 | 12 | 6 | 1.2 | 14 | 28 | ||||||
| - | 62 | 54 | 1.3 | 12 | 6 | 1.0 | 14 | 21 | ||||||||
| 34 | YY1.5A | + | 62 | 50 | 1.5 | 12 | 6 | 1.2 | 14 | 25 | ||||||
| - | 62 | 50 | 1.3 | 12 | 6 | 1.0 | 14 | 20 | ||||||||
| 35 | YY1.61A | + | ||||||||||||||
| - | 47 | 69 | 1.4 | 13 | 8 | 1.1 | 16 | 22 | ||||||||
| 36 | YQ12A | + | 118 | 143 | 2.0 | 24 | 23 | 1.7 | 41 | 177 | ||||||
| - | 118 | 143 | 1.6 | 24 | 23 | 1.3 | 41 | 138 | ||||||||
| 37 | YE1.65A | + | 69 | 42 | 2.5 | 10 | 4 | 2.1 | 9.5 | 34 | ||||||
| - | 69 | 42 | 1.9 | 10 | 4 | 1.6 | 9.5 | 24 | ||||||||
| 38 | YB1.31A | + | 62 | 53 | 1.6 | 23 | 4 | 1.3 | 0.5 | 27 | ||||||
| - | 62 | 53 | 1.4 | 23 | 4 | 1.1 | 0.5 | 22 | ||||||||
| 39 | YKM1.5Z | + | 62 | 54 | 1.6 | 11 | 6 | 1.2 | 14.5 | 27 | ||||||
| - | 62 | 54 | 1.2 | 11 | 6 | 1.05 | 14.5 | 20.3 | ||||||||
| 40 | YKM1.6Z | + | 75 | 48 | 1.5 | 18 | 6 | 1.25 | 11.5 | 27 | ||||||
| - | 75 | 48 | 1.4 | 18 | 6 | 1.15 | 11.5 | 24.6 | ||||||||
| 41 | YKM2.9Z | + | 82 | 58 | 1.8 | 15 | 8 | 1.4 | 15.5 | 43 | ||||||
| - | 82 | 58 | 1.4 | 15 | 8 | 1.1 | 15.5 | 33 | ||||||||
| 42 | YKM1.65Z | + | 48 | 69 | 1.6 | 12 | 8 | 1.3 | 15.5 | 28 | ||||||
| - | 48 | 69 | 1.3 | 12 | 8 | 1.05 | 15.5 | 22.4 | ||||||||
| 43 | YKM2.4Z | + | 72 | 58 | 1.7 | 14 | 8 | 1.55 | 15.5 | 37 | ||||||
| - | 72 | 58 | 1.35 | 14 | 8 | 1.1 | 15.5 | 27 | ||||||||
| 44 | YKM2.5Z | + | 72 | 62 | 1.8 | 12 | 8 | 1.5 | 17.5 | 40 | ||||||
| - | 72 | 62 | 1.3 | 12 | 8 | 1.1 | 17.5 | 29 | ||||||||
| 45 | YB1.25 | + | 69 | 39 | 2.1 | 23 | 3 | 1.5 | 1 | 27.5 | ||||||
| - | 69 | 39 | 1.4 | 23 | 3 | 1.1 | 1 | 16.5 | ||||||||
| 46. YF11A | + | 93 | 109 | 1.4 | 17 | 10 | 1.1 | 31.5 | 71.5 | |||||||
| - | 93 | 109 | 1.2 | 17 | 10 | 0.95 | 31.5 | 57.5-69 | ||||||||
The "battery plate" in a VRLA battery refers to one of its essential components, which is the electrode within the battery cell. In lead-acid batteries, including VRLA batteries, the plates are typically made of lead or lead oxide coated onto a grid structure made of lead or lead alloy. These plates play a critical role in the battery's operation by facilitating the chemical reactions that store and release electrical energy. The design and construction of the plates in a VRLA battery are crucial for its performance, efficiency, and reliability in providing standby or backup power in various applications.
Motorcycle batteries, like many other lead-acid batteries, also use plates as one of their key components. These plates are fundamental to the battery's operation and are typically composed of lead or lead alloy. The design and construction of these plates are optimized for the specific requirements of motorcycle batteries, such as compact size, durability, and ability to withstand vibrations and shocks associated with motorcycle use. Motorcycle batteries are typically smaller and lighter compared to batteries used in larger vehicles, but they still need to provide sufficient starting power for the engine. Overall, the plates in motorcycle batteries play a crucial role in storing and releasing electrical energy, making them essential components for the proper functioning of the battery and the motorcycle's electrical system.
