Battery Plate(VRLA Batteries)

Battery Plate(VRLA Batteries)

The "battery plate" in a VRLA battery refers to one of its essential components, which is the electrode within the battery cell.



In lead-acid batteries, including VRLA batteries, the plates are typically made of lead or lead oxide coated onto a grid structure made of lead or lead alloy. These plates play a critical role in the battery's operation by facilitating the chemical reactions that store and release electrical energy. The design and construction of the plates in a VRLA battery are crucial for its performance, efficiency, and reliability in providing standby or backup power in various applications.

  • Item No :

    Battery Plate(VRLA Batteries)

  • Product Origin :

    Fujian, Jiangxi

  • Shipping Port :

    Xiamen, China

  • Lead Time :

    15 Days

  • MOQ :

    5000 PCS

  • Sample :

    Acceptable

  • Payment terms :

    T/T, L/C
Inquiry now
Download

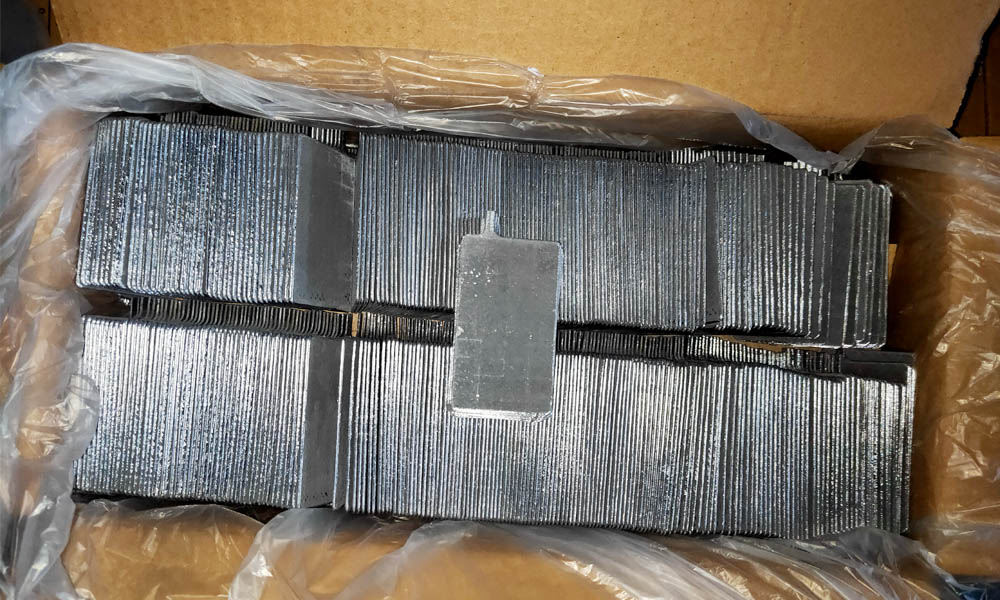

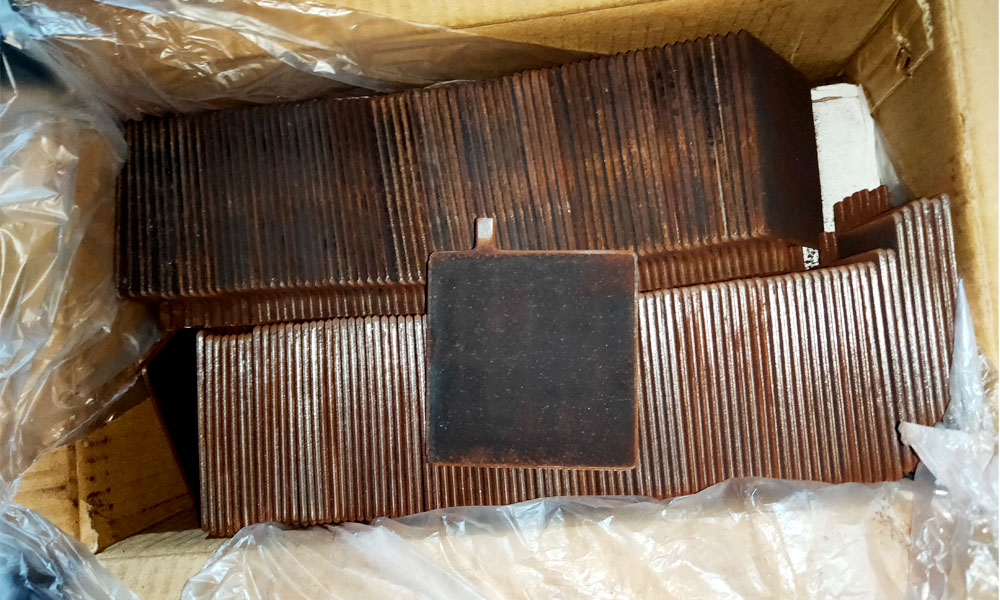

Lead Acid Battery Plates

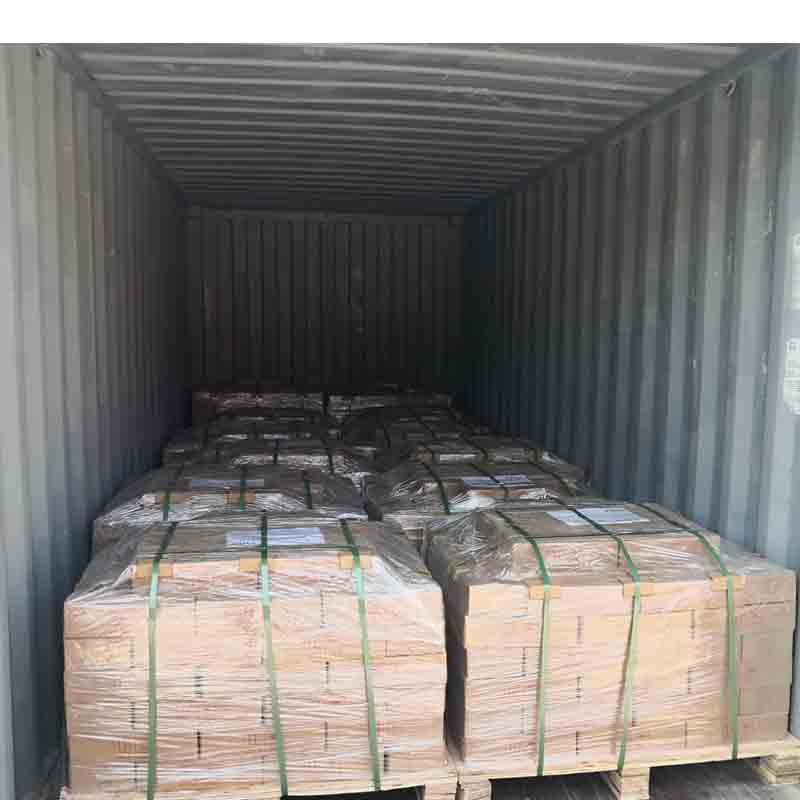

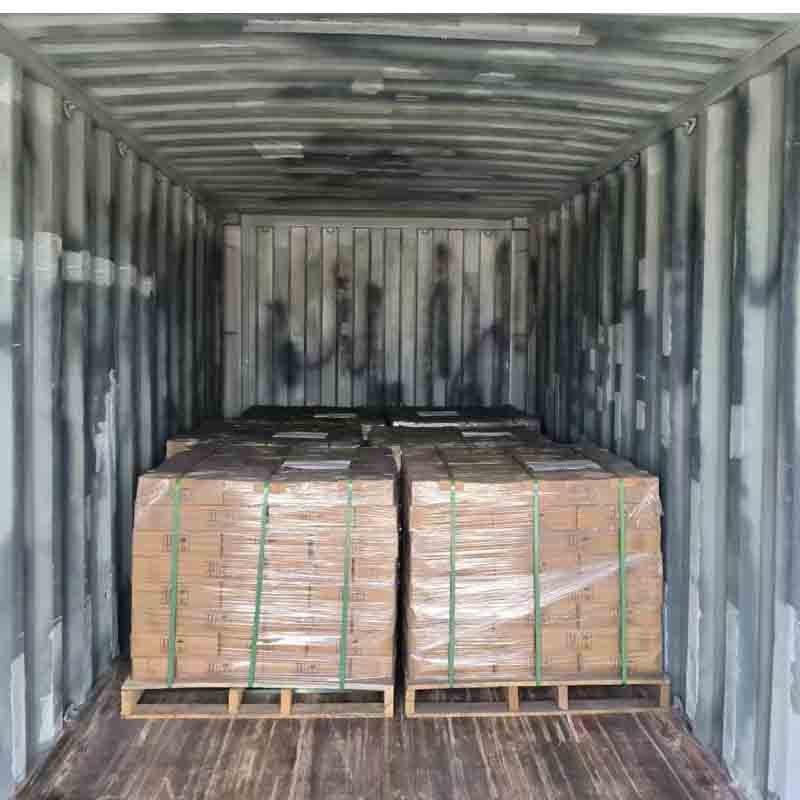

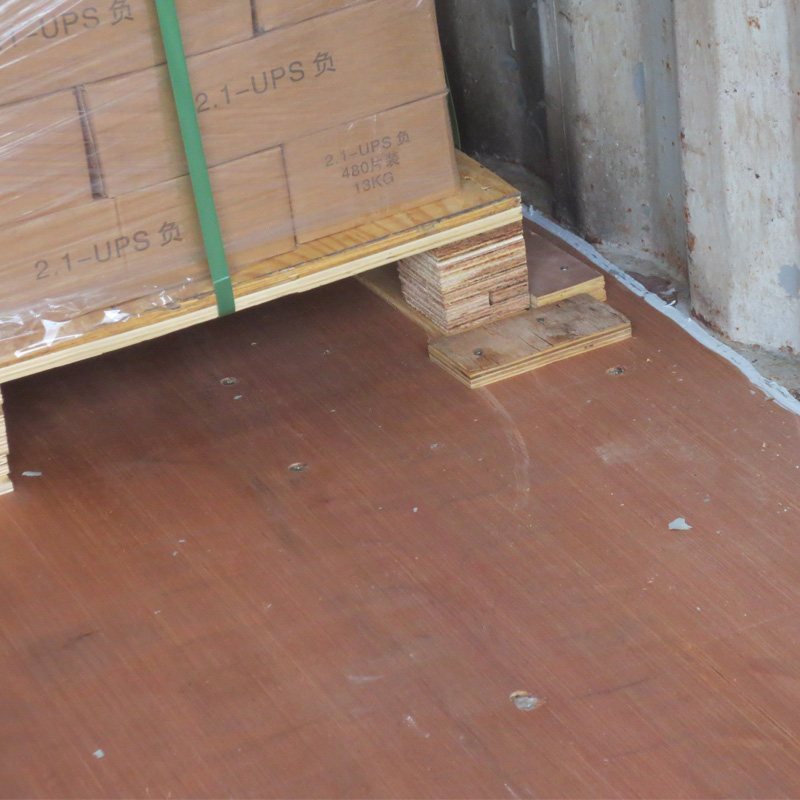

Packing Details and Loading Container:



Ups Battery Plate Manufacturer



Sla Battery Plate Supplier





Item Size Thickness (mm) Lug  H Lug  W Lug Thickness (mm) Lug Distance Weight±5％（g） Weight of Plate Grid    (g)
W×H
No Model mm pos+ neg- mm mm pos+ neg- mm pos+ neg- pos+ neg-
1 YY0.6 28.1×27.5 3.65 2.75 9 3 2.2 1.7 6 13.8 9.8 6 4
2 YY0.8 28.1×34 3.5 2.25 10 3.5 2.3 1.5 6 16.5 10.2 6.5 4.1
3 YY1.2 37×34 3.3 2.4 8 5 2.2 1.8 7 23 16 9.3 6.5
4 YY1.3 39×68 1.55 1.45 10 4 1.1 1.1 9 20 18 7 7
5 YY1.6 39×68 1.85 1.45 10 4 1.45 1.1 9 24 18 8.5 7
6 YY1.6S 39×68 2 1.45 10 4 1.55 1.2 9 25 18 8.5 7.7
7 YY1.8 39×68 2.1 1.6 10 4 1.6 1.2 9 27 20 9 7.7
8 YY1.8C 39×68 2.3 1.8 10 4 1.6 1.2 9 29 22 9 7.7
9 YY1.8F 44×62 2.1 1.6 10 4 1.55 1.2 12 27 21 8 7
10 YY1.8T 39×68 2.1 1.45 10 4 1.45 1.1 9 26 18 8.5 7
11 YYRT1.5A 39×68 2.4 1.8 10 4 2.2 1.5 9 32 22 10.5 6.5
12 YYRL1.7 39×68 2.6 1.8 10 4 2.25 1.5 9 35 22 10.5 6.5
13 YYE1.8 44×68 2.3 1.75 10 5 2 1.3 11 29.5 23.5 8.5 8
14 YY2.1 44×68 2.5 2 10 5 2.3 1.3 10 38 27 12.5 9
15 YYD4.0 66×119 1.8 1.55 13 8 1.5 1.3 16.5 66 53 25 21.5
16 YYKS4.5 66×116 1.7 1.45 12 7 1.45 1.2 17 62 48 21 18
17 YY5.0 74×76 3 2.2 12 7 2.5 1.6 17 80 57 24.5 17
18 YYD5.0 66×119.5 2.4 1.65 13 7 1.7 1.3 16 90 58 24 18.5
19 YY5.5/5.3 66×116 2.3 1.7 14 7 1.6 1.3 17 84/74 60/53 22 18.5
20 YY8.0A 108×105 2.6 2.1 18 8 2.3 1.5 37 148 105 45 31
21 YY8.0B 111×118 2.1 1.5 16 9 2 1.4 38.5 130 82 42 31
22 YYB10.0 144×110 2 1.7 20 15 1.6 1.35 47 153/156 108 51 40.5
23 YY11 115×117 2.7 1.85 12.5 10 2.2 1.4 41 185 118 61.5 41
24 YY13 133×154 2.1 1.7 20 14 1.9 1.35 39 215 145 67 52
25 YYB13 148.5×112 2.45 1.85 18 14 2.2 1.5 46 202 138 68 46
26 YYD13 148.5×112 2.8 1.95 18 14 2.2 1.5 46 220 150 68 46
27 YYE13 148.5×112 2.9 2 18 14 2.6 1.9 46 230 160 78 52
28 YY14 119×152 2.6 2.1 16 12.5 2 1.5 36 230 170 73 52
29 YY15 144×139 2.5 1.9 24 16 1.8 1.3 45.5 250 180 82 56
30 YY16B 148×148 2.6 1.7 20 16 2.2 1.4 46 276 176 97 65
31 YY16.5 150×153 2.2 1.9 20 17 1.8 1.65 44 250 190 84 75
32 YY17 150×154 2.6 1.8 20 17 2.2 1.4 44 290 190 87 64
33 YY17B 150×154 2.75 1.9 20 17 2.2 1.4 44 300 200 87 64
34 YY17D 150×153 2.7 1.9 20 17 2.25 1.65 44 300 200 101 75
35 YYHR17 150×163 2.9 2.3 18 17 2.3 1.6 44 345/355 230/250 112 82
36 YYHR18 150×153 3 1.95 18 19 2.55 1.65 47 325 210 95 70
37 YYMG18 150×153 3 2 18 19 2.55 1.65 47 325 220 95 70
38 YYBSB18 152×153 3.1 2.05 20 15 2.8 1.8 47.5 352 225 112 77
39 YYHR18.5 150×175 3.1 2.3 15 17 2.4 1.5 44 372 254 120 69
40 YYHW20 150×153 3.4 2.3 18 15 3 1.9 47.5 378 247 121 88
41 YYZN20 120×225 2.7 1.7 18 12 2.6 1.5 8.5 350 205 120 78
42 YYBSB20 120×225 2.9 1.9 18 14 2.6 1.5 27.5 370 226 112 80
43 YYC25 100×290 4 2 24 14 3.8 1.8 29 565 252 211 100
44 YYC20 150×153 3.4 2.5 18 15 3 2 47.5 400 270 141 78
45 YYHW25 150×153 4 2.45 18 15 3.7 1.9 47.5 437 266 145 /
46 YYHR20 150×163 2.2 1.8 18 17 2 1.4 44 318 215 90.5 68
47 YYHW25F 120×225 3.8 2.3 20 14 3.45 1.9 24.5 505 312 172 120
48 YYHR25 148×205 2.9 1.9 28 19 2.3 1.3 46 433 278 138 88
49 YYU27 150×220 2.85 1.95 20 15 2.55 1.65 45 460 305 138 98
50 YYHR29 148×250 2.7 1.9 20 18 2.35 1.5 44 500 310 148 94
51 YYD25 162×170 3.1 2.1 20 17 2.7 1.65 29 460 280 148 98
52 YYHR30 167×235 3 2 20 18 2.8 1.8 35 560 360 170 113.5
53 YYD35 162×245 3.1 2.1 20 16 2.8 2 56 636 400 208 138
54 YYD40 151×310 3.1 2.3 32 18 2.7 1.8 44 770 530 210 160
  Tolerance ±0.5 ±0.1   ±1.0 ±0.2 ±0.1   ±0.1
